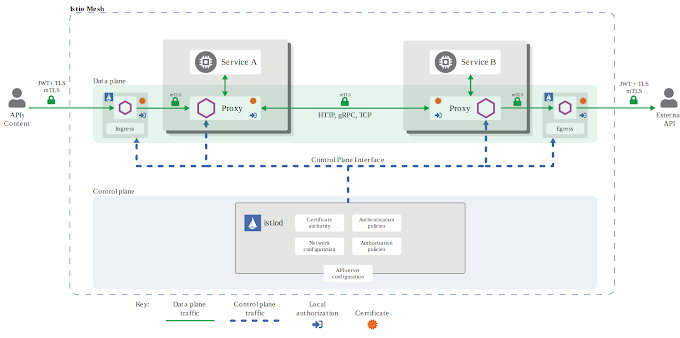

https://istio.io/latest/docs/concepts/security/arch-sec.svg
The purpose of this post is to explain how we can have mTLS connections between applications, using Istio service mesh with the local Minikube server.
To learn more about Istio, please refer to this blog post.
Prerequisites : Please install below software in you machine
I have mentioned the versions that I have used for this setup.

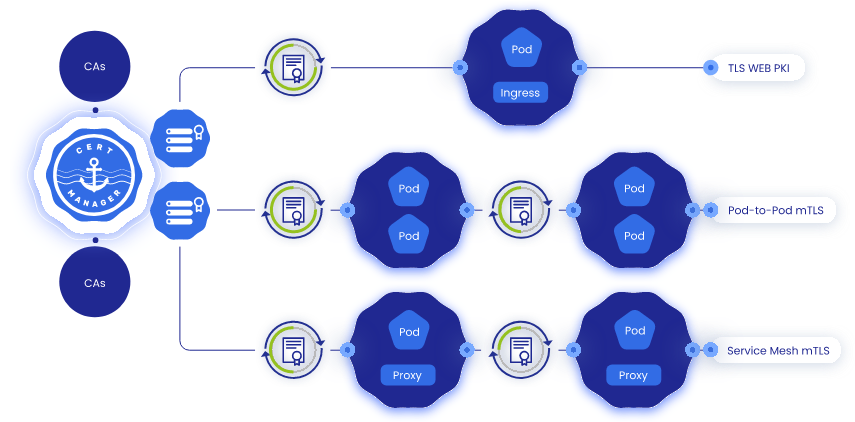

One of the main components of this stack is cert-manager. Cert-manager will manage the full life cycle of certificates from a variety of Issuers.
Installing cert-manager
Setup Helm
helm repo add jetstack https://charts.jetstack.io
helm repo update
Install cert-manager CRDs

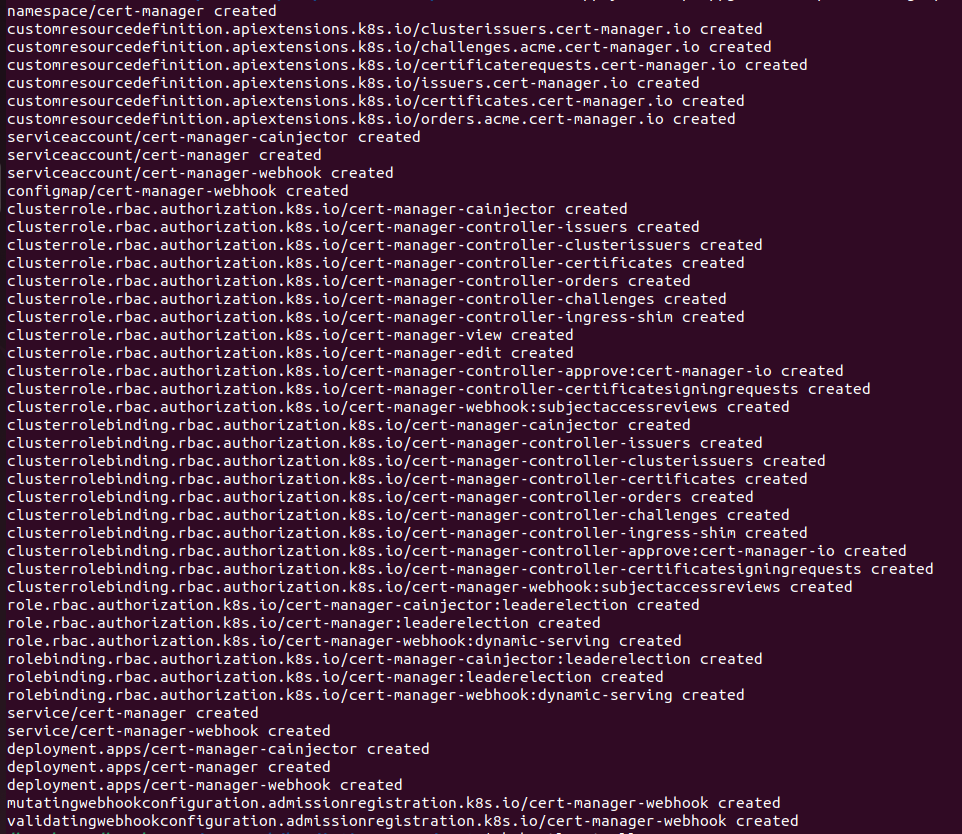

$ kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.11.1/cert-manager.yaml
Check the installation
Create a cert-manager Issuer and Issuing Certificate
Create istio-system namespace, to place certificates.
kubectl create namespace istio-system
An Issuer must be created in the istio-system namespace to sign Istiod and mesh workload certificates. We'll create a self-signed root CA in our cluster because it's really simple to configure.
kubectl apply -f https://raw.githubusercontent.com/cert-manager/website/master/content/docs/tutorials/istio-csr/example/example-issuer.yaml
Save Root Certificate to a file
kubectl get -n istio-system secret istio-ca -ogo-template='{{index .data "tls.crt"}}' | base64 -d > ca.pem
Create secret to keep the root certificate in cert-manager namespace
kubectl create secret generic -n cert-manager istio-root-ca --from-file=ca.pem=ca.pem
Installing istio-csr
The istio-csr project installs an agent that is responsible for verifying incoming certificate signing requests from Istio mesh workloads, and signs them through cert-manager via a configured Issuer.
helm install -n cert-manager cert-manager-istio-csr jetstack/cert-manager-istio-csr \
--set "app.tls.rootCAFile=/var/run/secrets/istio-csr/ca.pem" \
--set "volumeMounts[0].name=root-ca" \
--set "volumeMounts[0].mountPath=/var/run/secrets/istio-csr" \
--set "volumes[0].name=root-ca" \
--set "volumes[0].secret.secretName=istio-root-ca"

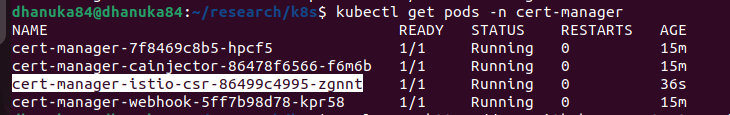

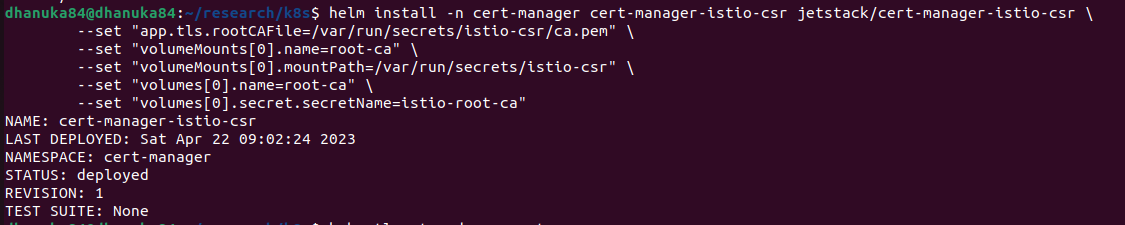

You can see that istio-csr is installed successfully.
Installing Istio
We are going to use, custom manifest file to install istio.
The custom manifest does the following:
Disables the CA server in istiod,
Ensures that Istio workloads request certificates from istio-csr,
Ensures that the istiod certificates and keys are mounted from the Certificate created when installing istio-csr.
curl -sSL https://raw.githubusercontent.com/cert-manager/website/master/content/docs/tutorials/istio-csr/example/istio-config-getting-started.yaml > istio-install-config.yaml
Install istio using custom configuration file.
$ istioctl install --set profile=demo -f istio-install-config.yaml
Let’s enable istio injection to namespace default
kubectl label namespace default istio-injection=enabled --overwrite
Validating the installation
kubectl get pods -n istio-system
Test mTLS
All workload certificates will now be requested through cert-manager using the configured Issuer.
Let’s deploy two applications and test.
kubectl create ns foo
kubectl label ns/foo istio-injection=enabled

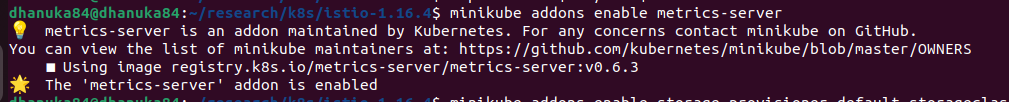

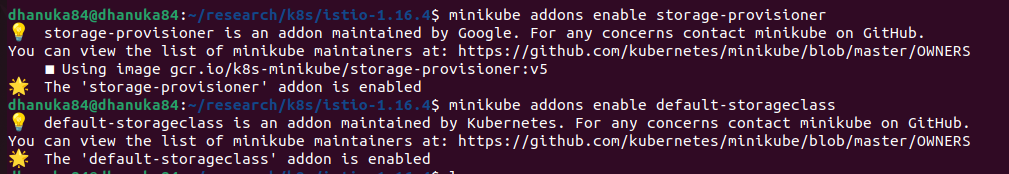

Install these minikube addons
storage-provisioner
default-storageclass
metrics-server
Run the sample sleep and httpbin workloads.
ISTIO_VERSION=1.16.4
kubectl apply -n foo -f https://raw.githubusercontent.com/istio/istio/release-$ISTIO_VERSION/samples/sleep/sleep.yaml
kubectl apply -n foo -f https://raw.githubusercontent.com/istio/istio/release-$ISTIO_VERSION/samples/httpbin/httpbin.yaml

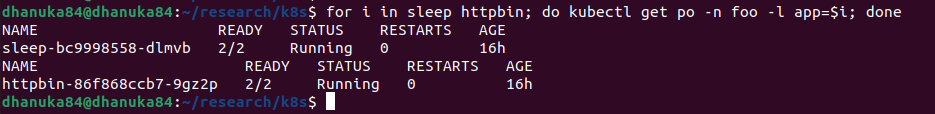

Verify the sleep and httpbin deployments have successfully rolled-out.
Verify the sidecar proxy was injected for each workload. Each workload pod should show 2/2 containers are READY.
Apply this Istio configuration to make sure that workloads will use mTLS.
kubectl apply -n foo -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: "default"
namespace: foo
spec:
mtls:
mode: STRICT
EOF
Test mTLS from the sleep pod to the httpbin pod. It should return http 200 code.
kubectl -n foo exec -it deploy/sleep -c sleep -- curl -o /dev/null -s -w '%{http_code}\n' http://httpbin.foo:8000/headers
Visualize mTLS
Optionally, you can run Kiali to visualize the mTLS connections.
kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-$ISTIO_VERSION/samples/addons/prometheus.yaml
kubectl apply -f https://raw.githubusercontent.com/istio/istio/release-$ISTIO_VERSION/samples/addons/kiali.yaml
Verify the Kiali and Prometheus deployments successfully rolled-out.
for i in prometheus kiali; do kubectl rollout status -n istio-system deploy/$i; done
Open Kiali dashboard
istioctl dashboard kiali
As in the image below, when you go to the application overview page you can see the traffic graph with padded lock symbol on the arrows.
