AWS EKS Security : Traffic Control





The purpose of this post is give high level overview about how to achieve security aspect of traffic controls in AWS EKS .

As seen in the above diagram, AWS EKS is a managed service, which means responsibility of control plane is part of AWS while components in the worker nodes are users/customers.

It's a shared responsibility model.

There are couple of ways, that we can control incoming and outgoing traffic to/from EKS cluster.

Cluster VPC and subnet considerations


There are couple of ways to setup a VPC and subnets.

1. Public and private subnets
2. Only public subnets
3. Only private subnets

Out of these, option one is the famous VPC and subnect setup for EKS cluster.
This way we can deploy webservices in public subnets while backend services in private subnets.






https://docs.aws.amazon.com/eks/latest/userguide/creating-a-vpc.html

https://docs.aws.amazon.com/eks/latest/userguide/network_reqs.html




Enable External SNAT (source network address translation)


By enabling external SNAT, EKS CNI implementation do not perform SNAT, and rely on whatever egress solution like, VPC NAT Gateway to do it for you

This is ideal for pods deployed in public subnets.


https://medium.com/swlh/what-to-know-before-using-amazon-eks-3b32cc64f131




AWS Security Groups & NACL


  • Security group is the firewall of EC2 Instances.
  • Network ACL is the firewall of the VPC Subnets.



https://medium.com/awesome-cloud/aws-difference-between-security-groups-and-network-acls-adc632ea29ae



Pod Security Groups


With this, we can apply same security groups rules to inbound and outbound network traffic of pods in EC2 instance/node

apiVersion: vpcresources.k8s.aws/v1beta1
kind: SecurityGroupPolicy
metadata:
  name: my-security-group-policy
  namespace: my-namespace
spec:
  podSelector:
    matchLabels:
      role: my-role
  securityGroups:
    groupIds:
      - sg-abc123


https://docs.aws.amazon.com/eks/latest/userguide/security-groups-for-pods.html



Network Policies


If you want to control traffic flow at the IP address or port level (OSI layer 3 or 4), then you might consider using Kubernetes NetworkPolicies for particular applications in your cluster

This is Kubernetes way of applying compliance and rules for network traffic within the cluster.

https://github.com/ahmetb/kubernetes-network-policy-recipes

Securing Cluster Networking with Network Policies - Ahmet Balkan, Google


Upgrade core add-ons

  1. kubeproxy
2. CoreDNS

It is always a best practice to upgrade these add-ons.

By doing this we can use latest traffic control related features.

eksctl utils update-kube-proxy --cluster=eksworkshop-eksctl --approve

eksctl utils update-coredns --cluster=eksworkshop-eksctl --approve

https://www.eksworkshop.com/intermediate/320_eks_upgrades/upgradeaddons/



Posted by dhanuka ranasinghe at 2/14/2022 0 comments
Labels: , ,

2/05/2022

Learning Camunda/Zeebe by Example - BPMN





The purpose of this blog post is to learn Camunda BPMN by example workflow.

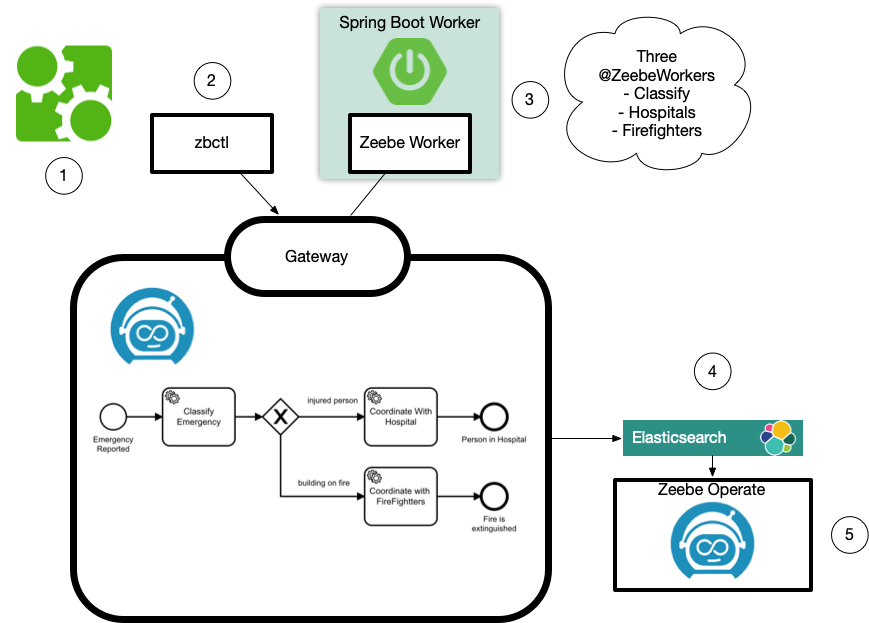

We have used the same example which is described in below github repository.


Installing Zeebe

  • We are using community version of Zeebe and related Helm charts. You can find the Helm charts below.

GitHub - camunda-community-hub/camunda-cloud-helm: Contains all camunda cloud related helm charts

  • Also we are using minikube as Kubernetes cluster.
  • Please note that I am using Ubuntu 18.04


1. Install Helm 3

$ curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3

$ chmod 700 get_helm.sh

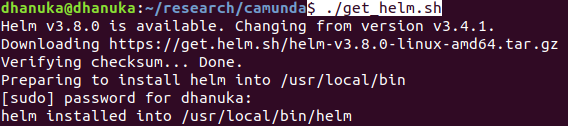

$ ./get_helm.sh



2.  Add Camunda Helm repository

$ helm repo add zeebe https://helm.camunda.io

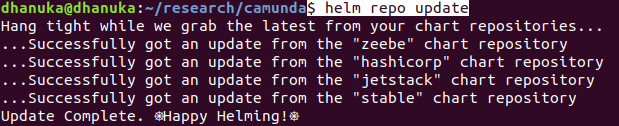

$ helm repo update

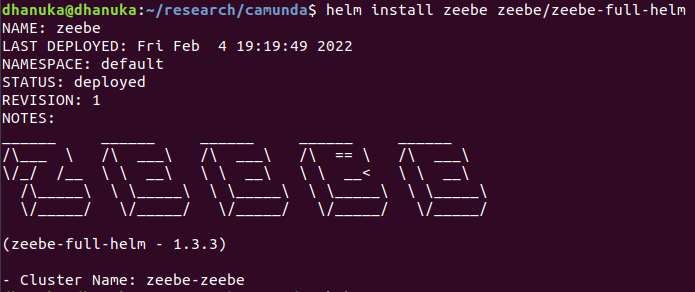

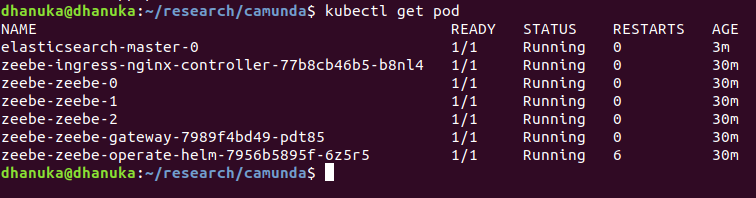

$ helm install zeebe zeebe/zeebe-full-helm

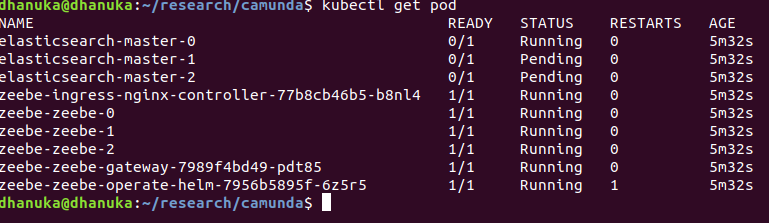

  • You can see that Elasticsearch pods are still in pending state



3. Troubleshooting Elasticsearch Installation

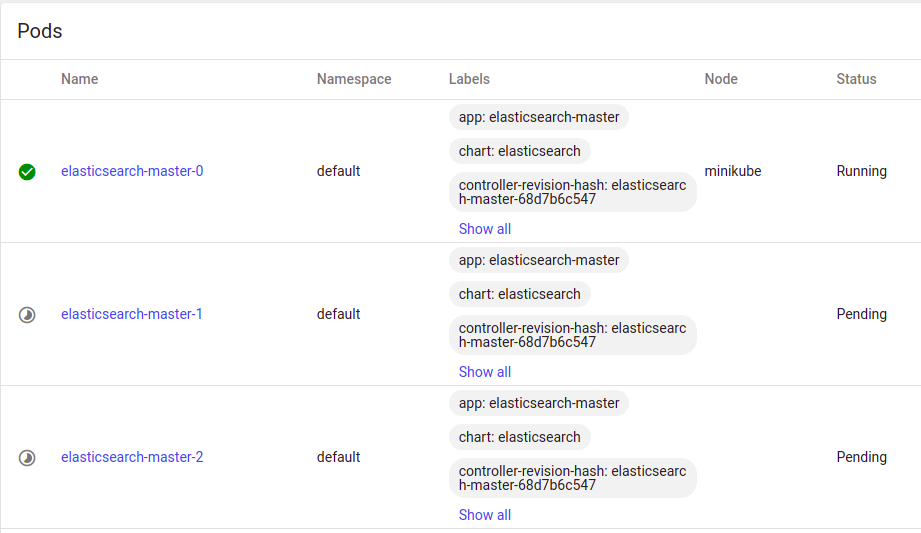

As you can see that , two Elasticsearch pods still in pending status.

  • According to below pods events says, "1 Node didn't match pod affinity"


  • When we check the pod affinity of the statefulset, we can't deploy all the Elasticsearch instances in the same host machine

   spec:
        affinity:
          podAntiAffinity:
            requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                - key: app
                  operator: In
                  values:
                  - elasticsearch-master
              topologyKey: kubernetes.io/hostname


  • Please check below document for further details

https://kubernetes.io/docs/concepts/scheduling-eviction/assign-pod-node/

Never co-located in the same node

The above example uses PodAntiAffinity rule with topologyKey: "kubernetes.io/hostname" to deploy the redis cluster so that no two instances are located on the same host. See ZooKeeper tutorial for an example of a StatefulSet configured with anti-affinity for high availability, using the same technique.


  • The quickest solution is to change k8s elasticsearch-master statefulset .


$ kubectl edit statefulset elasticsearch-master

  • We gonna make this a single Elasticsearch cluster by editing he configuration.
  • We have to remove cluster.initial_master_nodes environment variable configuration
  • Also add discovery.type as an environment variable.

#- name: cluster.initial_master_nodes

 #             value: 'elasticsearch-master-0,'

- name: discovery.type

              value: single-node

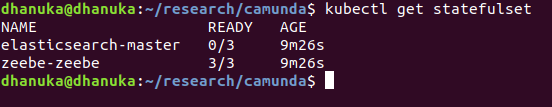

  • After editing, we can see single node Elasticsearch cluster.

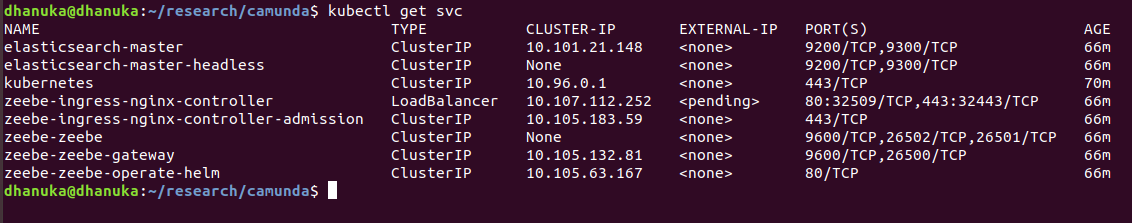

4. Port forwarding ingress-controller, zeebe-gateway and elasticsearch



kubectl port-forward  svc/zeebe-ingress-nginx-controller 8080:80

kubectl port-forward  svc/zeebe-zeebe-gateway  26500:26500

kubectl port-forward svc/elasticsearch-master 9200:9200


Camunda Operate

1. You can login to Camunda Operate using below link

http://localhost:8080/

user_name: demo
password: demo





2. Installing Zeebe client

Download the client from below location

https://github.com/camunda-cloud/zeebe/releases

$ sudo mv zbctl /usr/local/bin/zbctl

Check the Zeebe cluster

$ zbctl status --insecure



Camunda Modeler

1. Download below version  and extract it.
https://downloads.camunda.cloud/release/camunda-modeler/4.8.1/

2. Then execute the startup script as below

camunda-modeler-4.8.1-linux-x64$ ./camunda-modeler

3. Clone the github repository

https://github.com/dhanuka84/SAGA-Microservices-Zeebe.git

$ cd SAGA-Microservices-Zeebe

4. Open the emergency-process.bpmn BPMN  workflow configuration

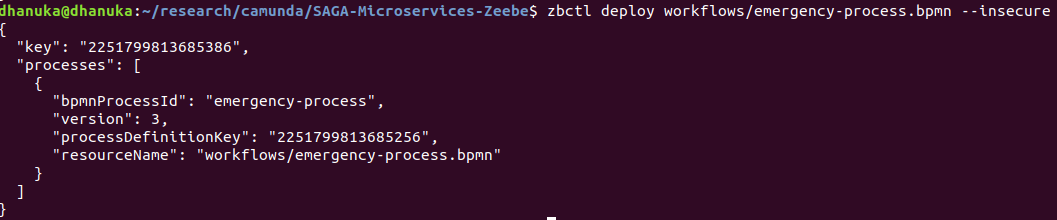

Deploying a BPMN Workflow Process

$ zbctl deploy workflows/emergency-process.bpmn --insecure


  • We can use Zeebe client as above to deploy a BPMN process.
  • Once deployed we can login to Camunda Operate and see check the Emergency Process that we have deployed.




Deploy BPMN Instance

We can deploy the sample instances as below

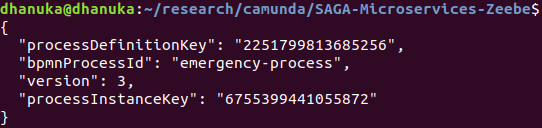

$ zbctl create instance emergency-process --variables "{\"emergencyReason\" : \"person\"}" --insecure

$ zbctl create instance emergency-process --variables "{\"emergencyReason\" : \"building on fire\"}" --insecure

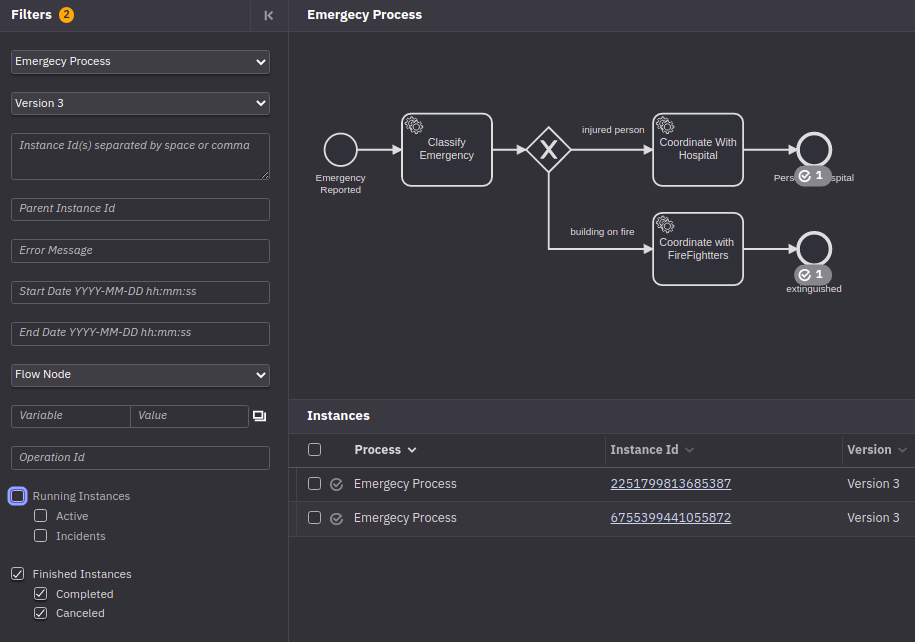

  • Operate view

  • Two instances created for both person and building on fire.
  • At this point, you will see that they are both stuck at the Classify Emergency task. This is because you don't have workers for such tasks, so the process will wait in that state until we provide one of these workers.


Starting a simple Spring Boot Zeebe Worker


cd  src/zeebe-worker-spring-boot/

mvn clean package

mvn spring-boot:run


  • The worker is configured by default to connect to localhost:26500 to fetch Jobs. If everything is up and running the worker will start and connect, automatically completing the pending tasks in our Workflow Instances.
  • You can see the completed events.
  • Once tasks are completed , there wont be any active instances.

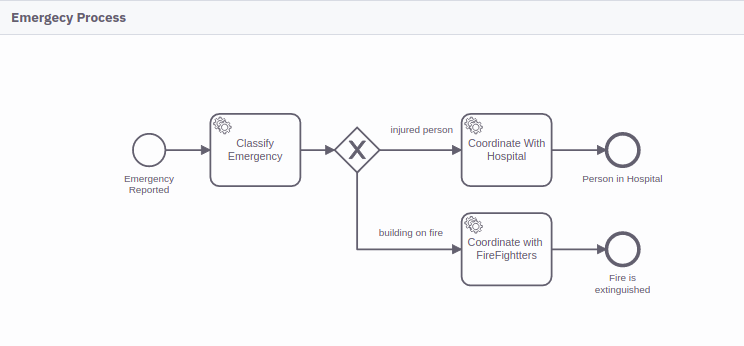

Understanding the BPMN workflow.

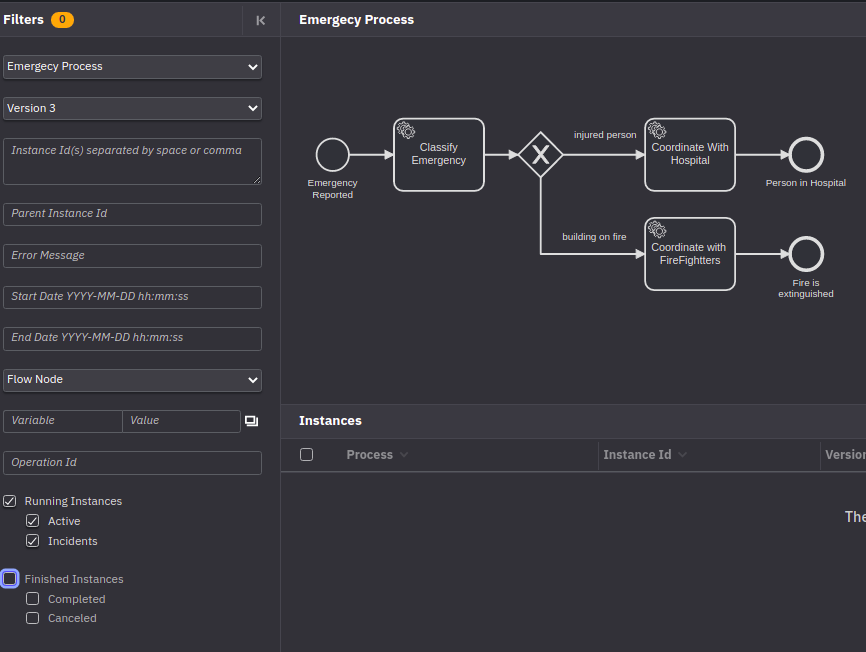

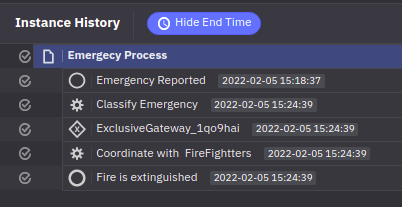

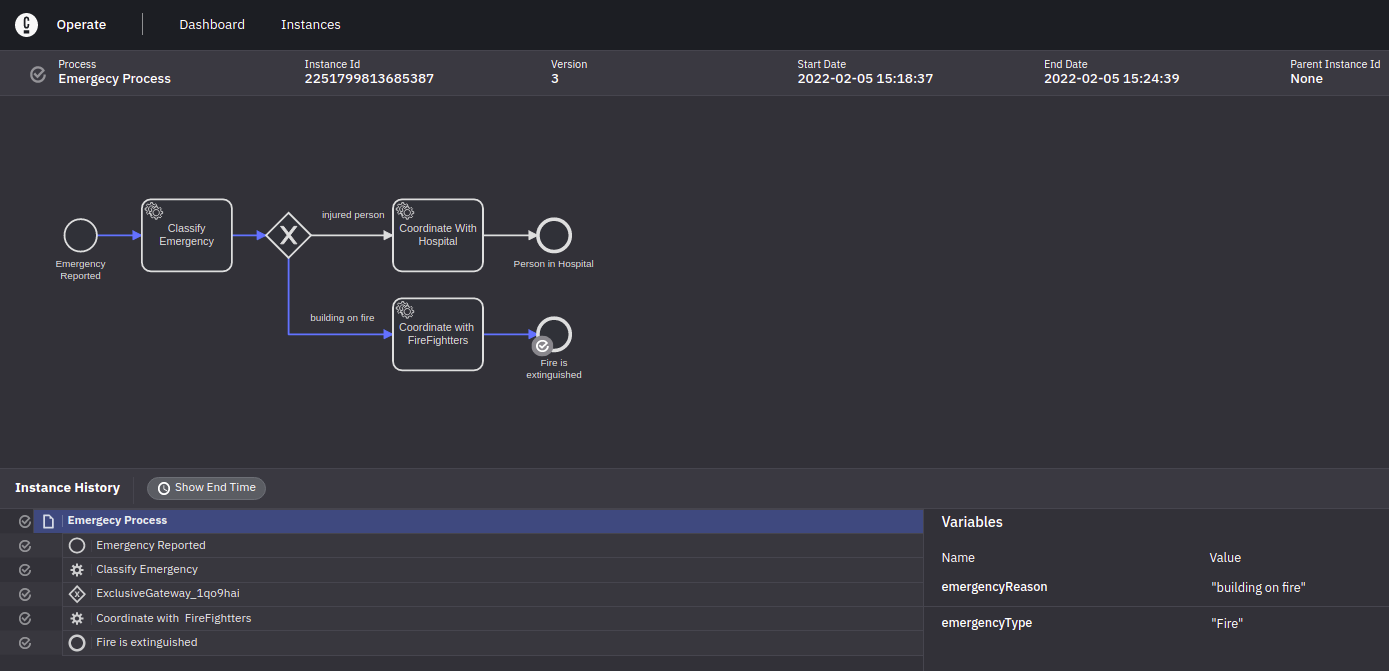

  • In the Camunda Operate, once you click one of a instance id, it will navigate to Instance History view.



1. Start Event
2. Sequence Flow
3. Service Task
4. Exclusive Gateway
5. End Event


<bpmn:startEvent id="StartEvent_1" name="Emergency Reported">

     <bpmn:outgoing>SequenceFlow_1kfpnnj</bpmn:outgoing>

</bpmn:startEvent>


<bpmn:sequenceFlow id="SequenceFlow_1kfpnnj" sourceRef="StartEvent_1" targetRef="ServiceTask_0qrwam7" />


<bpmn:serviceTask id="ServiceTask_0qrwam7" name="Classify Emergency">

     <bpmn:extensionElements>

       <zeebe:taskDefinition type="classify" />

       <zeebe:taskHeaders>

         <zeebe:header />

       </zeebe:taskHeaders>

     </bpmn:extensionElements>

     <bpmn:incoming>SequenceFlow_1kfpnnj</bpmn:incoming>

     <bpmn:outgoing>SequenceFlow_18oq9dv</bpmn:outgoing>

   </bpmn:serviceTask>



  • Now once we created the workflow instance, it's stuck on Classify Emergency task, till worker complete it.
  • In the Spring Boot DemoApplication.java class, you can see, worker complete the job when the type="classify"

@ZeebeWorker(type = "classify")
public void classifyEmergency(final JobClient client, final ActivatedJob job) {
logJob(job);
if (job.getVariablesAsMap().get("emergencyReason") == null) { // default to ambulance if no reason is provided
client.newCompleteCommand(job.getKey()).variables("{\"emergencyType\": \"Injured\"}").send().join();
}else if (job.getVariablesAsMap().get("emergencyReason").toString().contains("person")) {
client.newCompleteCommand(job.getKey()).variables("{\"emergencyType\": \"Injured\"}").send().join();
} else if (job.getVariablesAsMap().get("emergencyReason").toString().contains("fire")) {
client.newCompleteCommand(job.getKey()).variables("{\"emergencyType\": \"Fire\"}").send().join();
}
}

  • This will activate the name="building on fire" sourceRef=" sequence flow.

<bpmn:sequenceFlow id="SequenceFlow_18oq9dv" sourceRef="ServiceTask_0qrwam7" targetRef="ExclusiveGateway_1qo9hai" />



<bpmn:exclusiveGateway id="ExclusiveGateway_1qo9hai">

     <bpmn:incoming>SequenceFlow_18oq9dv</bpmn:incoming>

     <bpmn:outgoing>SequenceFlow_113qjg3</bpmn:outgoing>

     <bpmn:outgoing>SequenceFlow_0dlz63c</bpmn:outgoing>

</bpmn:exclusiveGateway>


<bpmn:sequenceFlow id="SequenceFlow_0dlz63c" name="building on fire" sourceRef="ExclusiveGateway_1qo9hai" targetRef="ServiceTask_0w2zgz6">

     <bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">= emergencyType = "Fire"</bpmn:conditionExpression>

   </bpmn:sequenceFlow>


  • Then again work flow will stuck on "Coordinate with FireFighters" service task.
  • Spring Boot application will create a worker and it will complete the task

@ZeebeWorker(type = "firefighters")
public void handleFirefighterCoordination(final JobClient client, final ActivatedJob job) {
logJob(job);
client.newCompleteCommand(job.getKey()).send().join();
}

  • Finally flow will completed and it will end at endEvent

<bpmn:serviceTask id="ServiceTask_0w2zgz6" name="Coordinate with  FireFightters">

     <bpmn:extensionElements>

       <zeebe:taskDefinition type="firefighters" />

     </bpmn:extensionElements>

     <bpmn:incoming>SequenceFlow_0dlz63c</bpmn:incoming>

     <bpmn:outgoing>SequenceFlow_0nybe3i</bpmn:outgoing>

</bpmn:serviceTask>


<bpmn:sequenceFlow id="SequenceFlow_0nybe3i" sourceRef="ServiceTask_0w2zgz6" targetRef="EndEvent_1r97jjl" />


<bpmn:endEvent id="EndEvent_1r97jjl" name="Fire is extinguished">

     <bpmn:incoming>SequenceFlow_0nybe3i</bpmn:incoming>

</bpmn:endEvent>



Elasticsearch Indices


You can see the indices are created by Camunda to export data into Elasticsearch.



References:
